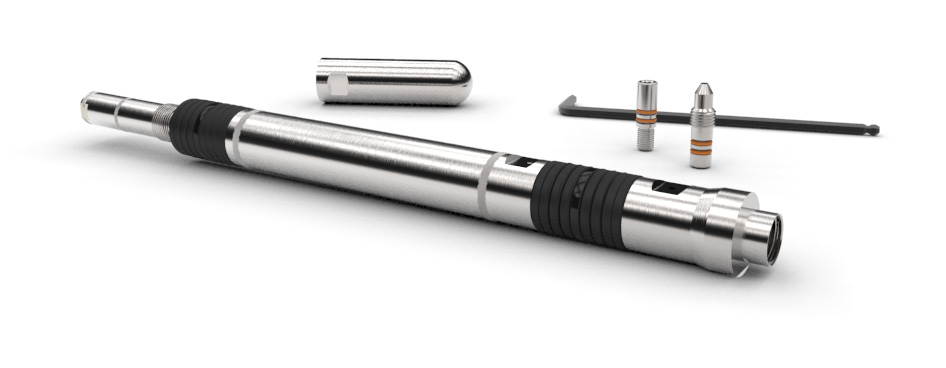

KC3-SPM (1.00" Diameter, Piezo Sensor, Side Pocket Mandrel Gauge, ~ 1.5 years batter life)
Besides, boasting the same unique blend of high performance and low maintenance common to the entire KC3 product line, the KC3-SPM 1.0 is the longest lasting, most versatile Side Pocket Mandrel gauge on the market. The meticulously managed, permanent power supply has three times the capacity of any other 1.0" SPM gauge available. To put that in perspective, the KC3-SPM 1.0 can record continuously at a 15 second sample rate for over 1000 days and still have room to spare in its 16 million sample capacity memory.
Want more? The KC3-SPM 1.0 is also the only gauge in its class which can be configured on the fly, to measure either tubing or annulus pressure.
Download data directly to your Android device with Dashboard App or to a Windows machine with Dashboard Pro. or with Dashboard Lite which is built in and ready to run directly from the gauge memory.

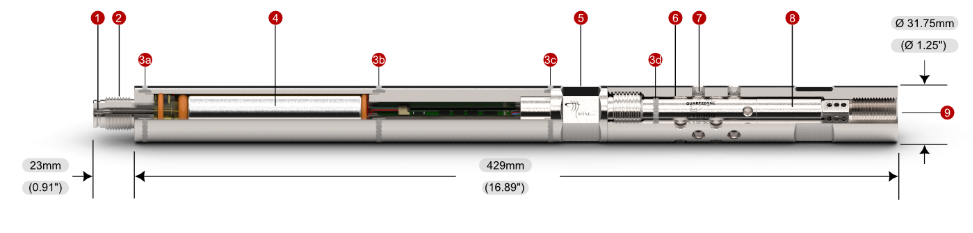

FEATURES AND SPECIFICATIONS
1. Top thread mates to industry standard BK-2 gas lift valve latch assembly.
2. Seal glands accept industry standard 1.0" gas lift valve packing.
3. Easily configure the KC3-SPM for tubing or annulus pressure measurement using the 3/16 Hex drive (included).
4. 22.225 mm (7/8”) wrench (2 included).
5. Embedded lithium metal battery pack reduces job site hazard and provides superior battery management.
6. Piezoelectric pressure sensor.
7. Hermetically sealed electrical connections facilitate USB flashdrive style communication.
8. Fusion welded construction for superior reliability.

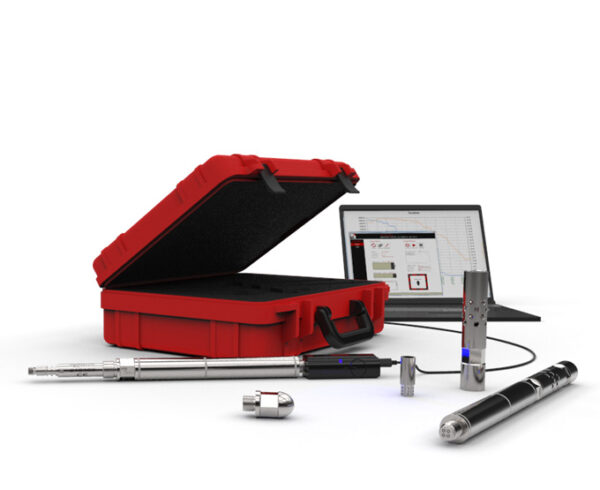

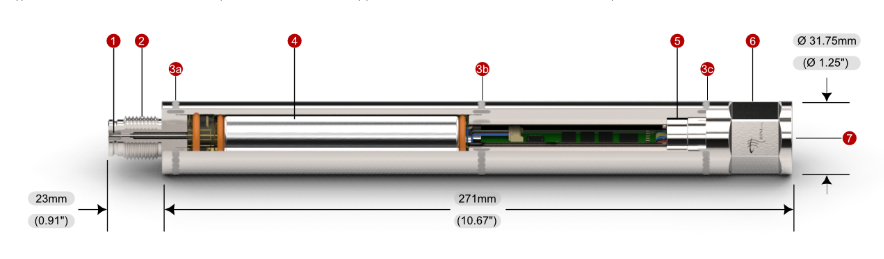

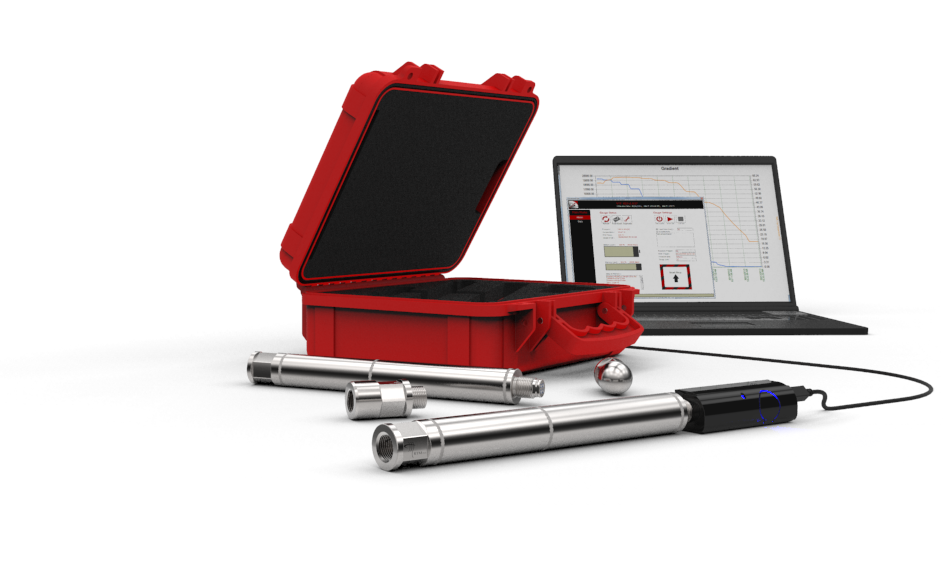

A unique blend of high performance and low maintenance is found in the KC3 piezoelectric downhole memory pressure gauge from RTM , thanks - in part - to the hermetically sealed, snap-on electrical connector and fusion-welded stainless steel construction.
KC3's USB flash-drive style communication allows the embedded configuration, data extraction and plotting software - Dashboard Lite - to be run directly from the gauge memory on any Windows machine, without having to install proprietary drivers.
Energized by a meticulously managed permanent power supply, KC3 delivers flawless performance for approximately four years between battery replacements.

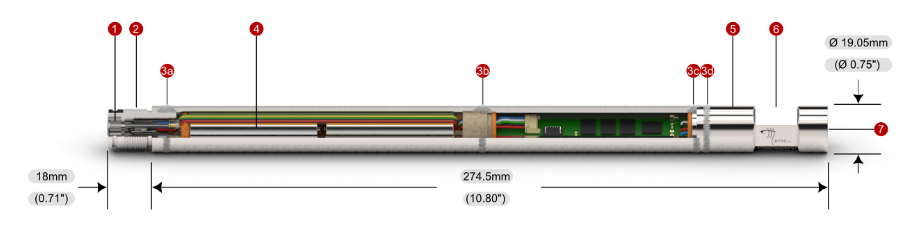

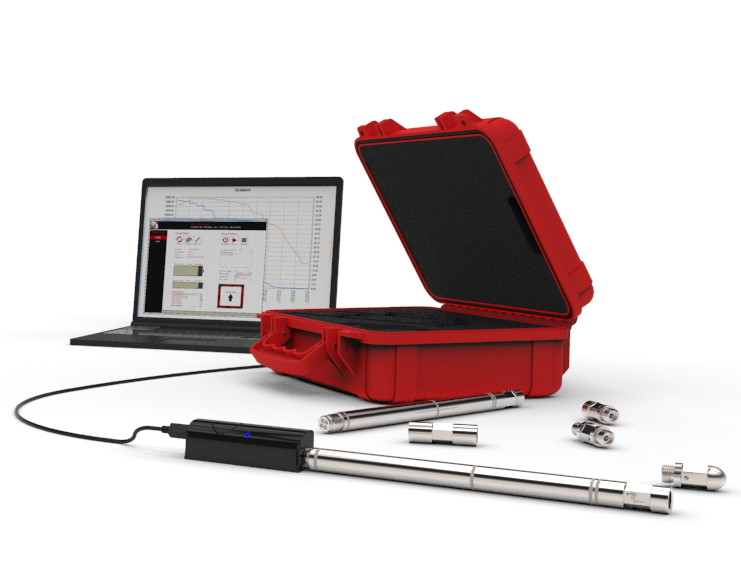

A unique blend of high performance and low maintenance is found in the KC375 piezoelectric downhole memory pressure gauge from RTM , thanks - in part - to the hermetically sealed, snap-on electrical connector and fusion welded stainless steel construction.
KC375's USB flash-drive style communication allows the embedded configuration, data extraction and plotting software - Dashboard Lite - to be run directly from the gauge memory on any Windows machine, without having to install proprietary drivers.
Energized by a meticulously managed permanent power supply, KC375 will deliver flawless performance for about twelve months between power supply replacements.
